Shown here is a Hypneumat M350EHB unit with a right-angle milling head. The unit is powered by a 1.5 HP 1762 rpm brake motor and includes a push type hydra-brake and spindle positive stop.
Right-Angle Milling Head
read more
Multiple Spindle Heads
5 Drilling Units with Commander 850 Multi-Heads
These five M style units are equipped with Commander 850 series multi-heads. The multiple spindles heads each include guide rods and five adjustable spindles.
Billet Style 4-Spindle Head
Hypneumat made this custom billet-style 4-spindle multi-head for a customer’s application. This head is powered by a Hypneumat DQ46EHB auto-feed drilling unit.
DQ500 and Commander 4-36
This Hypneumat DQ56EHB drilling machine drives an 8-spindle Commander 4-36 multi-head. The machine rests on a 54″ by 48″ table and uses a 5 HP 1200 rpm motor.
Commander 8-12 with Adjustable Spindles
This Commander 8-12 series multiple-spindle head has 12 universal joint spindles. These collet style spindles can be adjusted for different hole patterns.
Hypneumat 2 Spindle Tapping Machine with Part Fixtures
Hypneumat 2 Spindle tapping machine utilizes a Commander 650 Series adjustable multi-head and includes part holding fixtures with pneumatic clamping and tap breakage detection sensors.
Hypneumat 8 Spindle Tapping Machine
Shown is a Hypneumat Lead-Screw Tapping Machine with a Commander 8 Spindle 4-15 Series Multi-head. This multiple spindle head is powered by a LS46E Lead Screw Tapping unit, is fully guarded, includes coolant, head raising mechanism, floating tool holders, with...

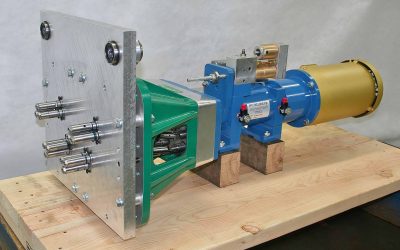

Commander 8-12 (12) Spindle Drilling Head
Shown is a 12 Station Dial Index Chamfering Machine built by Hypneumat, Inc. This machine chamfers 6 holes on 2 parts at one time and automatically ejects completed parts into a bin after each cycle. This 6 spindle Commander 500 Series multi head is powered by a...

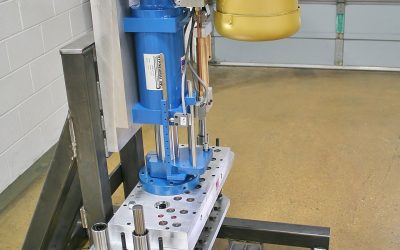

Hypneumat 16 Spindle Drilling System
This drilling system consists of a Hypneumat DQ58 Pneumatic Feed Unit and 16 Spindle Drill Head. 1,650 pounds of thrust, 7.5 HP motor at 2,000 rpm spindle speed, ER16 collet spindles, and spring loaded drill bushing plate.

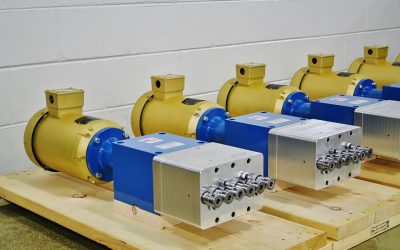

Hypneumat 6 spindle drilling units
Hypneumat just completed over a dozen 6 spindle drilling heads. These robust fixed spindle gear driven heads have (6) ER16 collet spindles set at 1.5″ centers.
