This Hypneumat Machine uses two opposing heavy duty LS46E leadscrew tapping units with floating tap holders and is wired with full controls, ready for the customer to mount their part holding fixture.
Dual Tapping LS46E Units
read more
Special Machines
DQ500 and Commander 4-36
This Hypneumat DQ56EHB drilling machine drives an 8-spindle Commander 4-36 multi-head. The machine rests on a 54″ by 48″ table and uses a 5 HP 1200 rpm motor.
M200EHB with Air Motor
Shown here is one of our M200EHB series drilling units with a 1 HP 2000 rpm Gauss air motor. Air motors were utilized for this application because of their smaller motor frame allowing for multiple units to be mounted in line to drill close-center holes. This unit has...
Dual Tapping Machine
Hypneumat Dual Tapping Machine with (2) LS36E Lead-Screw Tappers, (2) 3 spindle MH Series Multi-Heads, part holding fixtures, laser part presence and tap detection sensors, coolant tank, guarding, light curtain, full controls, wired and ready to run.
7 Station Semi-Automatic Swaging Machine (Hubbing Machine)
This Hypneumat-built machine will automatically apply adhesive and swage all types of abrasive and grinding wheels. The machine is manually loaded and has an auto unload station for high volume swaging/hubbing applications. Once the die cast hub is placed in station...
Drill and Tap Shuttle Machine
This Hypneumat Shuttle Machine was built for drilling and tapping a cast iron housing. The machine is equipped with one DQ56EHB drilling unit capable of 1600 lbf of thrust and a DQ56E equipped to tap a 0.55-12 thread with 75 lb-ft of torque. The Shuttle Machine is...
Hypneumat 2 Spindle Tapping Machine with Part Fixtures
Hypneumat 2 Spindle tapping machine utilizes a Commander 650 Series adjustable multi-head and includes part holding fixtures with pneumatic clamping and tap breakage detection sensors.

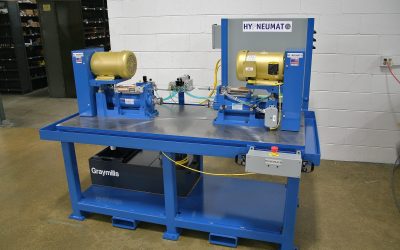

Opposing Drilling Unit Machine
This Hypneumat Machine consists of 2 opposing DQ46EHB drilling units with ER40 collet nosed spindles, 3 HP VFD motors mounted on a 7’ long machine base wired with full controls and ready for customer’s part fixture. Application: drilling 21/32” holes in forged...
Hypneumat 8 Spindle Tapping Machine
Shown is a Hypneumat Lead-Screw Tapping Machine with a Commander 8 Spindle 4-15 Series Multi-head. This multiple spindle head is powered by a LS46E Lead Screw Tapping unit, is fully guarded, includes coolant, head raising mechanism, floating tool holders, with...

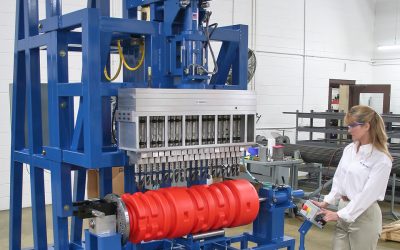

20 Spindle Drilling Machine
Hickenbottom, Inc. needed a reliable replacement for an old drilling machine. Hypneumat listened to the client’s needs and delivered an idea to increase the company’s production with reliability and longevity that will last for decades to come.A RELIABLE SOLUTION...
