Idea Center

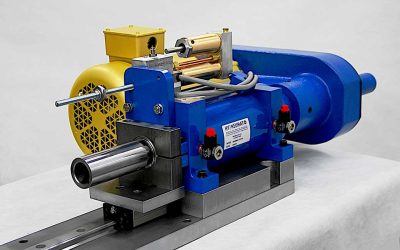

DQ46EHB with Quill Stabilizer
A Hypneumat Quill Stabilizer option can be added to our auto feed drilling units allowing for a rigid tool feed to offset high side load applications. This also provides an accurate and concentric tool feed for tight tolerance drilling and reaming operations. The...

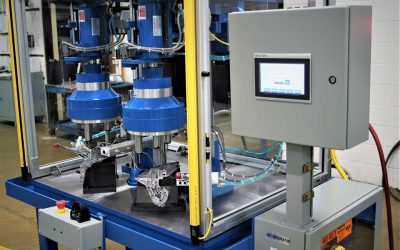

Dual Tapping Machine
Hypneumat Dual Tapping Machine with (2) LS36E Lead-Screw Tappers, (2) 3 spindle MH Series Multi-Heads, part holding fixtures, laser part presence and tap detection sensors, coolant tank, guarding, light curtain, full controls, wired and ready to run.

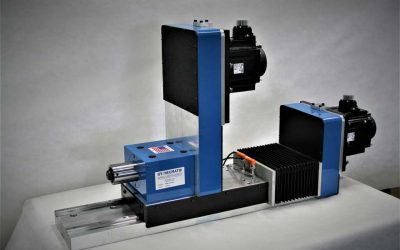

FX38 Rail Unit with HSK-C-50 Spindle
Shown is our FX38 Ball Screw Rail Unit equipped with a precision ground HSK-C-50 series spindle and Guhring clamping mechanism. The axial movement is powered by a 1.0 kW Mitsubishi servo motor, and the spindle a 1.5 kW servo spindle motor. Unit capabilities are 815...

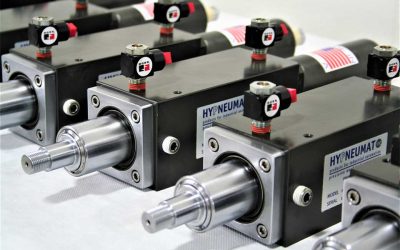

200 Series Food Grade Pneumatic Hypneumat Units
These S24 series Hypneumat units are custom built, per customer specifications, for the food industry. The units are fully chromed or anodized and utilize food grade oils and greases for lubrication. Capabilities: 4″ stroke length, 235 lbf of thrust at 100 psi, and 38...

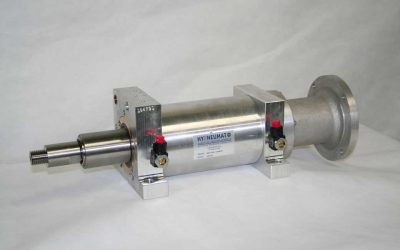

M46 Series Food Grade Hypneumat Unit
This Hypneumat DQ46 series feed unit is built to order for a food grade application. These units have aluminum front and rear heads, cylinder body, and rear housing. The remaining key parts are stainless steel; spindle, quill, and fasteners. All lubrication, including...

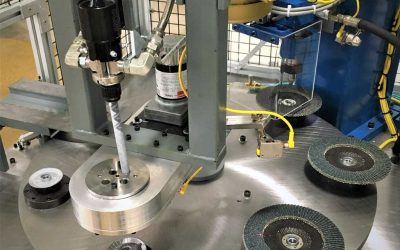

7 Station Semi-Automatic Swaging Machine (Hubbing Machine)
This Hypneumat-built machine will automatically apply adhesive and swage all types of abrasive and grinding wheels. The machine is manually loaded and has an auto unload station for high volume swaging/hubbing applications. Once the die cast hub is placed in station...
Drill and Tap Shuttle Machine
This Hypneumat Shuttle Machine was built for drilling and tapping a cast iron housing. The machine is equipped with one DQ56EHB drilling unit capable of 1600 lbf of thrust and a DQ56E equipped to tap a 0.55-12 thread with 75 lb-ft of torque. The Shuttle Machine is...

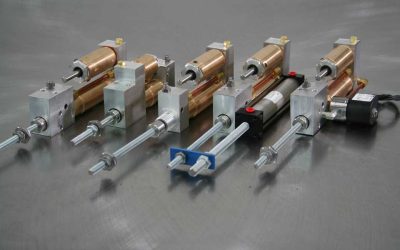

Hypneumat Hydra-Brakes
The Hypneumat “Hydra-Brake” is a self-contained hydraulic checking cylinder with optional push or pull type of operation. It’s ideal for providing a consistent and controlled stroke speed which is critical for many applications. Typically, the Hydra-Brake is mounted...

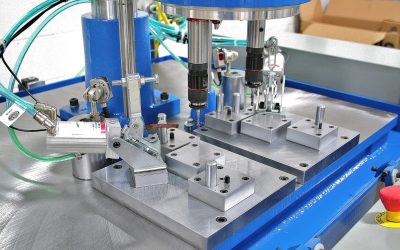

Hypneumat 2 Spindle Tapping Machine with Part Fixtures
Hypneumat 2 Spindle tapping machine utilizes a Commander 650 Series adjustable multi-head and includes part holding fixtures with pneumatic clamping and tap breakage detection sensors.

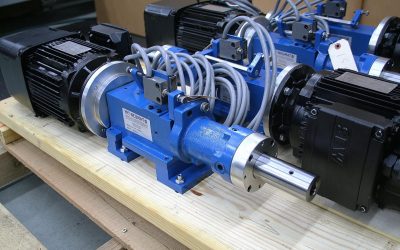

MLS175 Lead-Screw Tapping Units
Shown is a group of our Hypneumat MLS175E tapping units ready for shipment. These units are compact and designed for high cycle tapping.
