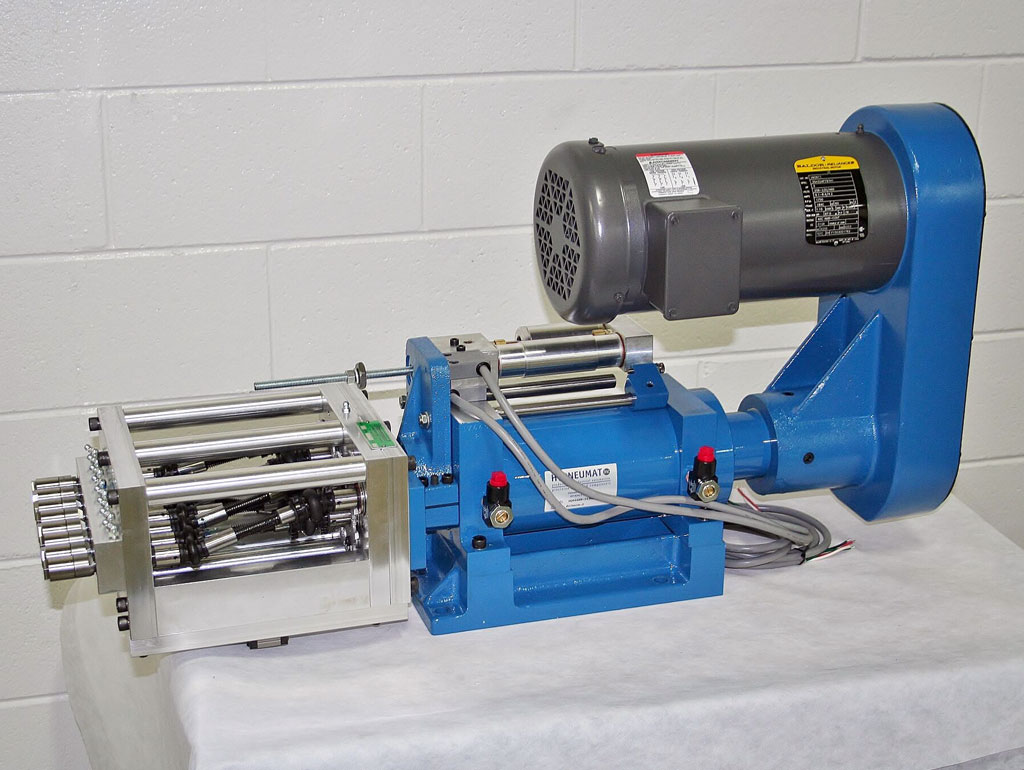

DQ-400 Series Drill Unit
Overview
Stroke Lengths – 6″
Drill capacity – .75″ in steel
Tap Capacity – .75″ in Steel
Drill Point Thrust:
- Piston Area – 11.07 sq. in.
- 1107 lbs. drill point thrust @ 100 psi air pressure
- 2214 lbs. drill point thrust @ 200 psi hydraulic pressure
Torque Rating – 420 in. lbs.
Spindle Speed – 5,000 RPM max.
Spindle – #2 or #3 Morse Female Taper Standard. Full options available.
Spindle Drive – From offset motor thru pulleys and belts to unit pulley shaft.
Additional information
| Drill Capacity Steel (inches) | 3/4" |
|---|---|
| Tap Capacity Steel (inches) | 3/4" |
| Stroke Length (inches) | 6" |
| Thrust @ 100 psi hyd. (pounds) | 1107 |
| Thrust @ 200 psi hyd. (pounds) | 2214 |
| Torque (in-lbs) | 420 |
