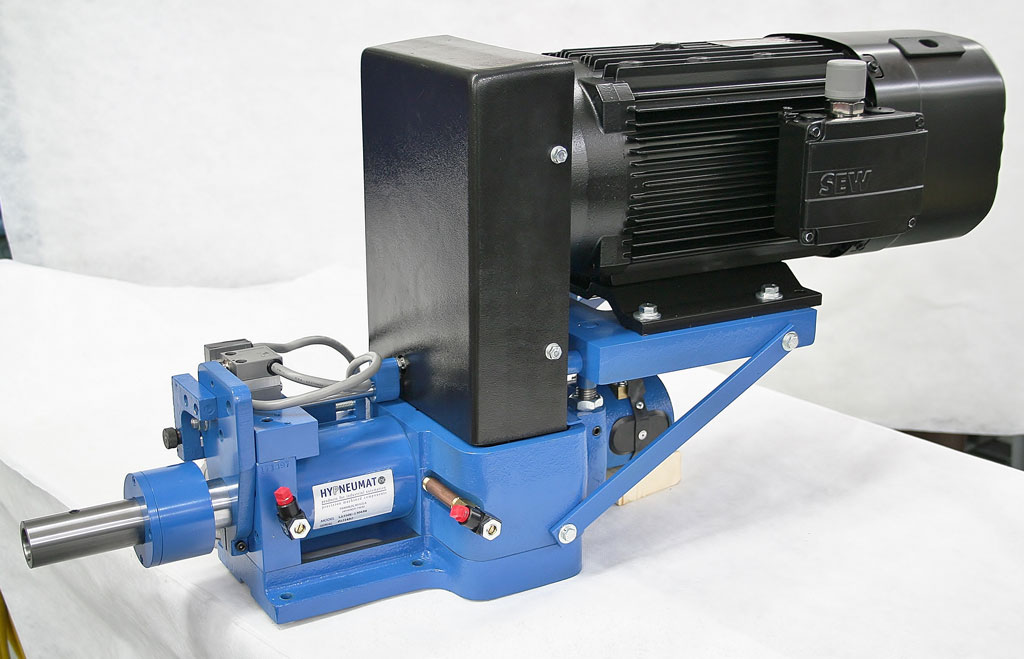

LS-300 Series Lead Screw Tap Unit
Overview
Stroke Lengths: 3.5″, 6″, 8″, 10″ and 12″
Tap Capacity – Dependent on motor horsepower.; 1 HP Motor with standard spindle; 2 HP Motor with heavy duty spindle.
Production Rate – 6 cycles/min. with standard electric brake motor. Up to 30 cycles/min. wtih special brake motor.
Multiple Operation – Same unit can be used for lead screw tap, air tap, drill, swell, and deep hole drill operations thru electric control cabinet modifications.
Lead Screw Pitch – 6 thru 56, and metric. Simple to change design.
Lead Screw – 1.75″ standard threading length. Extra long lengths available up to 2.75″.
Spindle Drive – From offset motor thru pulleys and belts to integrally mounted approach and return stroke.
Unit operation – Air operated for rapid approach and return stroke.
| Model | Stroke | A | B | C |
|---|---|---|---|---|
| LS-350E | 3.5″ | 6.19 | 6.94 | 24.50 |
| LS-36E | 6″ | 8.69 | 9.44 | 29.00 |
| LS-38E | 8″ | 10.69 | 11.44 | 34.38 |
| LS-310E | 10″ | 12.69 | 13.44 | 41.81 |
| LS-312E | 12″ | 14.69 | 15.44 | 47.81 |
Additional information
| Drill Capacity Steel (inches) | 1/2" |
|---|---|
| Tap Capacity Steel (inches) | 3-1/2 to 12" |
