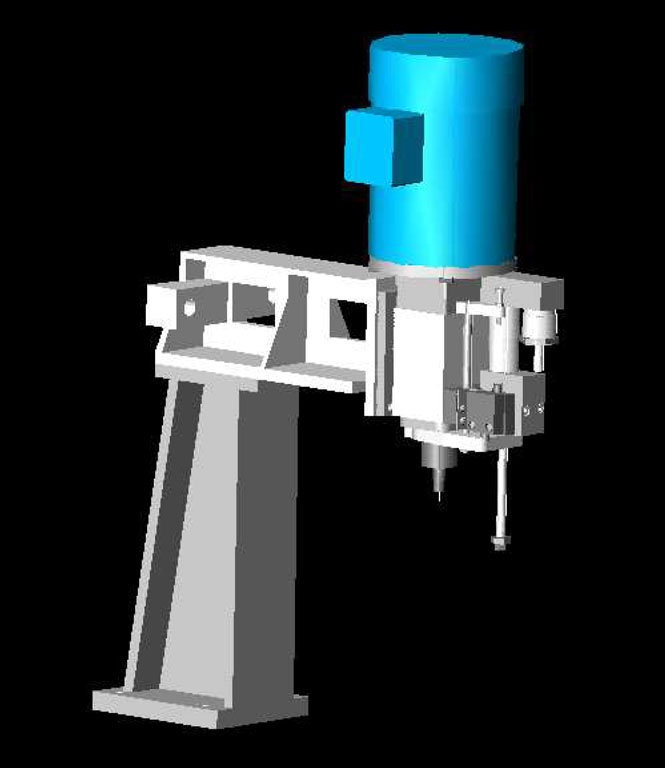

M-200 Series Drill Unit
Overview
Stroke Lengths – 2″ and 4″
Drill capacity – .25″ in Steel
Tap Capacity – .25″ in Steel
Drill Point Thrust:
- Piston Area – 2.35 sq. in.
- 235 lbs. drill point thrust @ 100 psi air pressure
- 470 lbs. drill point thrust @ 200 psi hydraulic pressure
Torque Rating – 38 in. lbs.
Spindle – #2 Jacobs Taper, Full options available.
Spindle Drive – Thru direct mounted motor
| Model | Stroke | A | B | C |
|---|---|---|---|---|
| M200 | 2″ | 3.25 | 4.75 | 18.88 |
| M24 | 4″ | 5.25 | 6.75 | 22.88 |
Additional information
| Drill Capacity Steel (inches) | 1/4" |
|---|---|
| Stroke Length (inches) | 2 & 4" |
| Tap Capacity Steel (inches) | 1/4" |
| Thrust @ 100 psi hyd. (pounds) | 235 |
| Thrust @ 200 psi hyd. (pounds) | 470 |
| Torque (in-lbs) | 38 |
