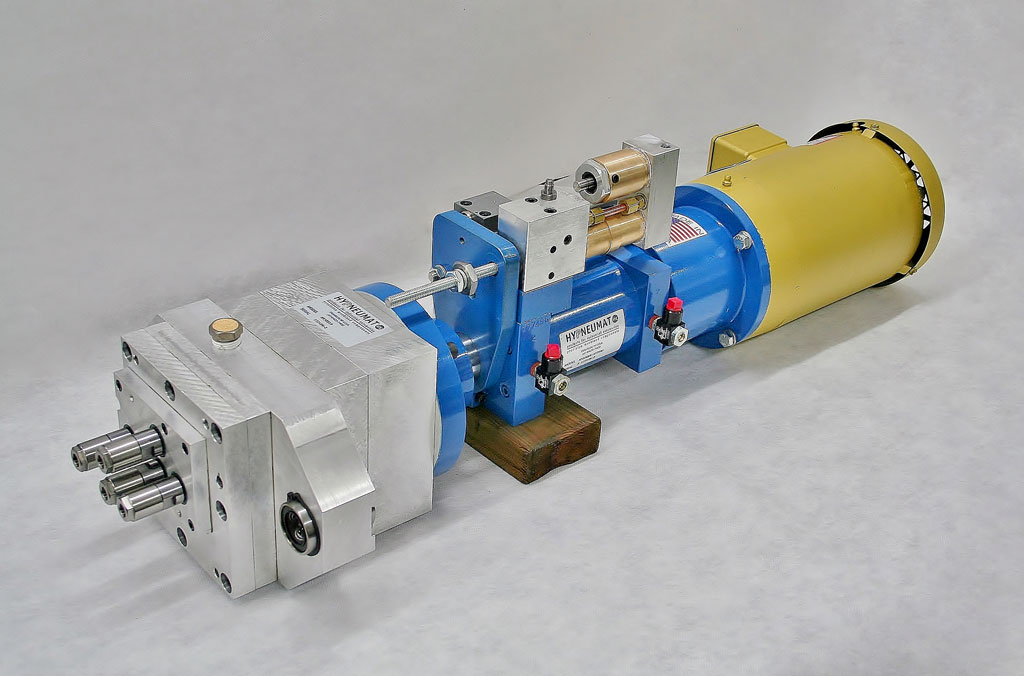

M-300 Series Drill Unit
Overview
Stroke Lengths – 3.5″, 6″ and 8″
Drill capacity – .38″ in steel with 100 psi air feed; .50″ in steel with 200 psi hydraulic feed
Tap Capacity – .50″ in Steel
Drill Point Thrust:
- Piston Area – 4.66 sq. in.
- 466 lbs. drill point thrust @ 100 psi air pressure
- 932 lbs. drill point thrust @ 200 psi hydraulic pressure
Torque Rating – 420 in. lbs.
Spindle Speed – 5,000 RPM max. (higher spindle speeds with air mist lubrication on bearings.)
Spindle – #2 Jacobs Taper, Full options available.
Spindle Drive – Thru direct mounted motor.
| Model | A | B | C | D |
|---|---|---|---|---|
| M-350 | 6.19 | 7.06 | 22.38 | 23.25 |
| M-36 | 8.68 | 9.56 | 27.18 | 28.06 |
| M-38 | 10.68 | 11.56 | 31.18 | 32.06 |
Additional information
| Drill Capacity Steel (inches) | 1/2" |
|---|---|
| Tap Capacity Steel (inches) | 1/2" |
| Stroke Length (inches) | 3-1/2 to 8" |
| Thrust @ 100 psi hyd. (pounds) | 466 |
| Thrust @ 200 psi hyd. (pounds) | 932 |
| Torque (in-lbs) | 38 |
