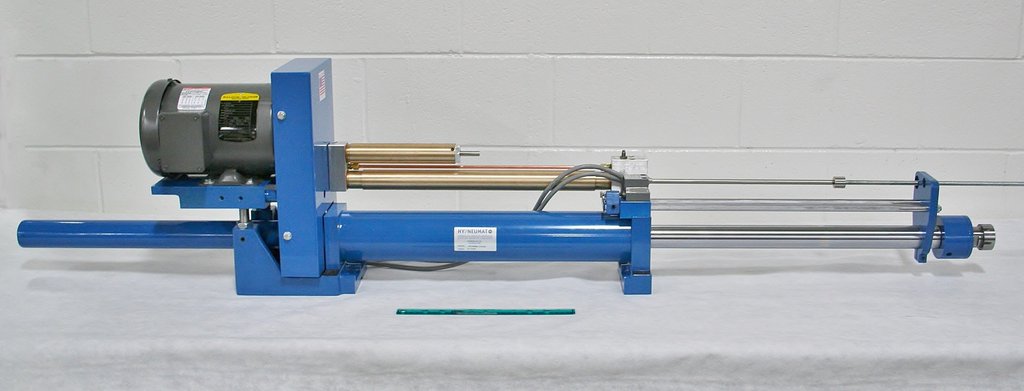

SP-300 Series Drill Unit
Overview
Stroke Lengths – 3.5″, 6″, 8″, 10″, 12″ and 18″
Drill capacity – .50″ in steel with 200 psi hydraulic feed
Tap Capacity – .50″ in Steel
Drill Point Thrust:
- Piston Area – 6.07 sq. in.
- 607 lbs. drill point thrust @ 100 psi air pressure
- 1214 lbs. drill point thrust @ 200 psi hydraulic pressure
Torque Rating – 420 in. lbs.
Spindle Speed – 5,000 RPM max.
Spindle – #2 Jacobs Taper Standard, Full options available.
Spindle Drive – From offset motor thru pulleys and belts to integrally mounted pulley on unit.
| Model | A | B | C |
|---|---|---|---|
| SP-350 | 6.19 | 6.94 | 15.00 |
| SP-36 | 8.69 | 9.44 | 20.00 |
| SP-38 | 10.69 | 11.44 | 24.00 |
| SP-310 | 12.69 | 13.44 | 28.00 |
| SP-312 | 14.69 | 15.44 | 32.00 |
| SP-318 | 20.69 | 21.44 | 44.00 |
Additional information
| Drill Capacity Steel (inches) | 1/2" |
|---|---|
| Tap Capacity Steel (inches) | 1/2" |
| Stroke Length (inches) | 3-1/2 to 18" |
| Thrust @ 100 psi hyd. (pounds) | 607 |
| Thrust @ 200 psi hyd. (pounds) | 1214 |
| Torque (in-lbs) | 420 |
